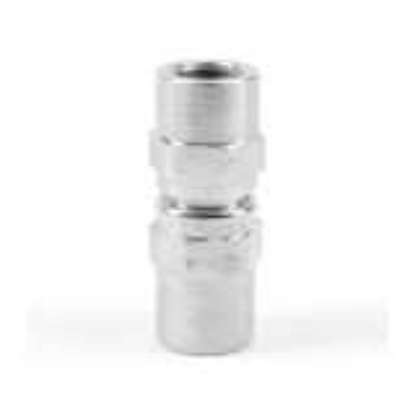

| Produkttyp | Non return valve port to port |
| Produktserie | Light |
| Nenninnendurchmesser | 19 mm |
| Anschluss 1 Typ | Female BSPP thread (ISO 1179-1) |
| Größe Anschluss 1 | G 1 |
| Rohraußendurchmesser Anschluss 1 | na mm |
| Anschluss 2 Typ | Female BSPP thread (ISO 1179-1) |
| Größe Anschluss 2 | G 1 |
| Rohraußendurchmesser Anschluss 2 | n/a |
| Strömungsrichtung | n/a |
| Dichtungsmaterial | n/a |
| Konstruktionswerkstoffe | Stainless Steel |
| Optionales Zubehör | n/a |
| Maximaler Betriebsdruck | 250 bar |
| Maximaler Durchfluss | n/a |
| Größe Anschluss 3 | n/a |
| Maximale Betriebstemperatur | +250 °C |
| Montageart | Screw |
| Größe Anschluss 2 | G 1 inch |
| Anschluss 2 Typ | Female BSPP thread (ISO 1179-1) |
| Minimale Betriebstemperatur | -35 °C |
| Größe Anschluss 1 | 1 inch |
| Anschluss 3 Typ | n/a |
| Anschluss 1 Typ | Female BSPP thread (ISO 1179-1) |
| Konfiguration | n/a |
| Gehäusematerial | Stainless steel |
| Öffnungsdruck | 1 bar |
| Strömungsrichtung | n/a |
| Betätigungsart | Mechanical |
| Dichtungsmaterial | FKM |
