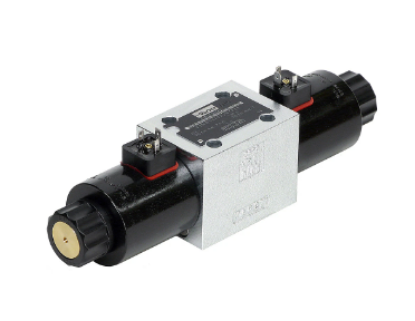

D3MW020DVJW1P

350 bar, 24VDC 36W, bis 150l/min, FPM

Verfügbarkeit:

Bestellartikel

Artikelnummer: 2096307

Lieferzeit: 10 Tage

513,00 €

exklusive Versand

Menge:

Parker's direct operated directional control valves series D1MW (NG06 / CETOP 03 / NFPA D03) and D3MW (NG10 / CETOP 05 / NFPA D05) feature an excellent corrosion protection of the valve body, the solenoid coil and the anchor tube which predestines these on/off valves for mobile applications.

The D1MW is based on the D1VW series, the D3MW on the D3W series. Both 3-chamber valves are direct operated by wet pin solenoids. They provide the typical solenoid connections for the mobile market such as AMP Junior Timer and DT04-2P “Deutsch”.

Markets:
• Mobile

Features/Benefits:
• Robust design - ideal for rough applications
• Wide range of spools and connectors - universally applicable, fits all hydraulic systems
• Anti corrosion coating according to DIN EN ISO 9227 NSS (standard for D3MW, optionally for D1MW) - excellent surface protection
• Extended manual override with rubber cover (optionally for D1MW)
• Short delivery time - no warehousing necessary

Applications:
• Construction equipment
• Material handling equipment
• Agriculture machinery
• Forestry equipment

Produktspezifikation

Attributbezeichnung	Attributwert
Anschluss	NG10 / CETOP 05
Dichtungsmaterial	FPM
Signaleingang	24 V
Magnetventilanschluss	EN 175301-803
Option Magnetventil	Standard solenoid
Korrosionsschutz enthalten	Anti corrosion coating
Schieberposition	2 positions, operated in position a or b, no center, no offset position
Schiebercode	020
Nenngröße	NG10 / CETOP 05
Bedienungsart	Direct
Montageart	Subplate mounting
Betätigungsart	Magnet
Funktion	2-way
Produktserie	Directional control valve
Montageposition	Unrestriced, preferably horizontal
Maximaler Durchfluss	150 L/min
Maximaler Betriebsdruck	350 bar
Maximale Betriebstemperatur	60 °C
Minimale Betriebstemperatur	-25 °C
Für Fluidtyp	Water glycol
Dichtungsmaterial	FPM
Gewicht	6.3 kg
Gehäusematerial	Cast iron
