| Gewinde | G1/4 |
| Anschluß 1 Gewindeart | BSPP |
| Rohr-AD Anschluss 2 (mm) | 8 |

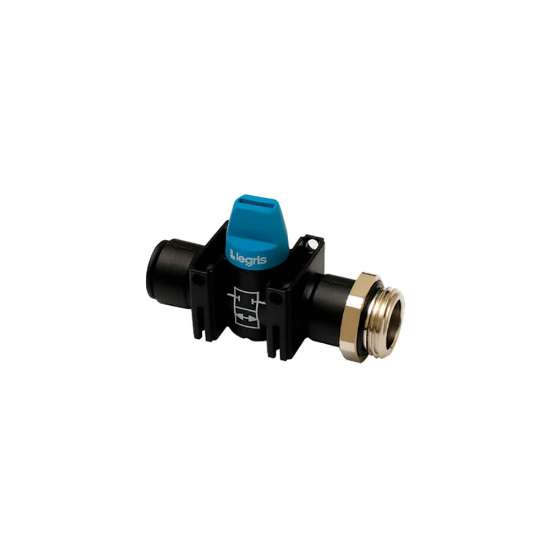

| Form | 2/2-Wege Miniatur-Kugelhahn, Außengewinde BSPP |
| Rohr-AD Anschluss 2 (Zoll) | na |
| Maximaler Durchfluss | n/a |
| Marke | Legris |
| Division | Low Pressure Connectors Europe Division |
| Industrie | Industrial Manufacturing Equipment |
| Produkttyp | Ball Valves |
| Produkttyp | Push-in and Male Connection Ball Valves |
| Produktserie | Mini Series |
| Funktion | 2-Way |
| Bedienungsart | Lever-operated |
| Form | In-line |
| Durchfluss | n/a |
| Anschlusstyp | Push-in and Thread |
| Anschlussgröße | n/a |
| Konfiguration | 2/2 |
| Für Fluidtyp | Compressed Air |
| Montageart | In-line |
| Betätigungsart | Manual |
| Konstruktionswerkstoffe | Polymer |
| Gehäusematerial | Polymer |
| Sitzmaterial | Graphite-impregnated polyamide |
| Dichtungsmaterial | NBR |
| Schaftmaterial | Brass |
| Kugelmaterial | Nickel Plated Brass |
| O-Ring-Material | NBR |
| Grifftyp | Blue short lever (polymer) |
| Menge je Packung | 10 |
| Betriebsdruck | Vacuum to 10 bar |
| Material Schaftdichtung | NBR |
| Greifringmaterial | Stainless Steel |
| Dichtungsmaterial Kugel | NBR |
| Anschluss 1 Typ | BSPP |
| Gewindemaß Anschluss 1 | G1/4 |
| Rohraußendurchmesser | 8 mm |
