421RH-24

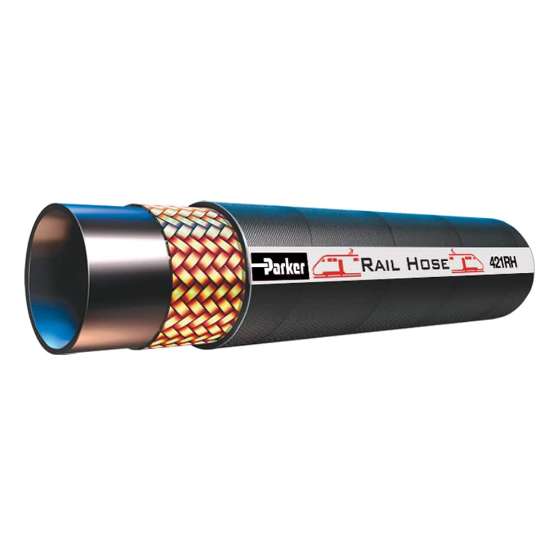

No-Skive hose construction with fire retardant synthetic rubber cover
Verfügbarkeit: Bestellartikel
Artikelnummer: 1022213
Lieferzeit: sofort
*
132,82 €
exklusive Versand

No-Skive hose construction with fire retardant synthetic rubber cover and Nitrile (NBR) inner tube. Railway approved: European Standard EN45545 and ISO15540: HL2 (without the need of FS-F-Fire Sleeve). For general medium pressure hydraulic and pneumatic systems as well as water and oil cooling circuits.

Produktspezifikation
AttributbezeichnungAttributwert
Schlauch-ID (DN)38
Schlauch-ID (Zoll)1 1/2
Schlauch-ID (Size)-24
Schlauch I.D. (mm)38,1
Schlauchaußendurchmesser51,1 mm
Maximaler Betriebsdruck (MPa)5,0
Maximaler Betriebsdruck (psi)2900
Min. Berstdruck (Mpa)20,0
Min. Berstdruck (psi)2900
Minimaler Biegeradius500 mm
Gewicht1,49 kg/m
