| Gewindemass Anschluss (Zoll) | 9/16 - 18 |
| Gewindemass Anschluss (mm) | n/a |
| Schlauch I.D. (mm) | 7.9 |
| Maximaler Betriebsdruck (psi) | 58000 |
| Fittingtyp | Y4 |
| Schlauch-Nenninnendurchmesser | 8 |
| Schlauch-ID (Größe) | -5 |
| Schlauch-Innendurchmesser | 5/16 inch |
| Anschlusstyp | UNF-LH |
| Maximaler Betriebsdruck | 400 MPa |
| Form | Straight |

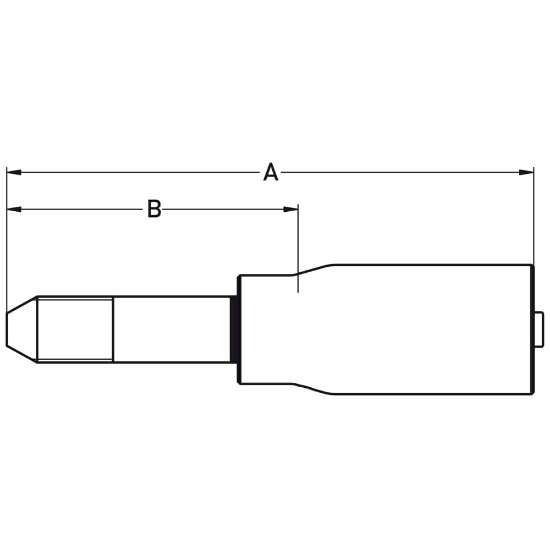

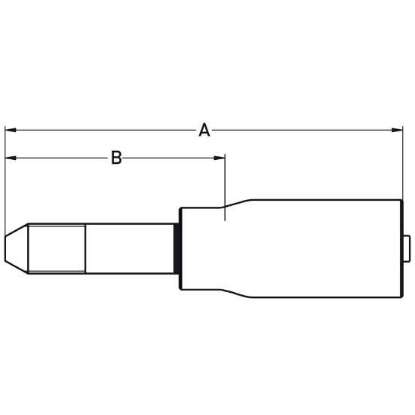

| Produkttyp | High pressure tube nipple UNF – LH thread |
| Konstruktionswerkstoffe | Nipple: very high strength stainless steel<br/>Shell: high strength carbon steel, zinc plated |
