| Gewindemass Anschluss (mm) | 24x1.5 |
| Schlauch I.D. (mm) | 12.7 |
| Gewindemass Anschluss (Zoll) | – |

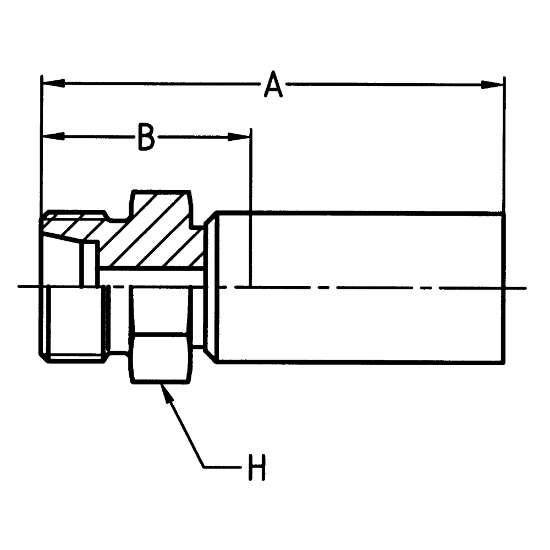

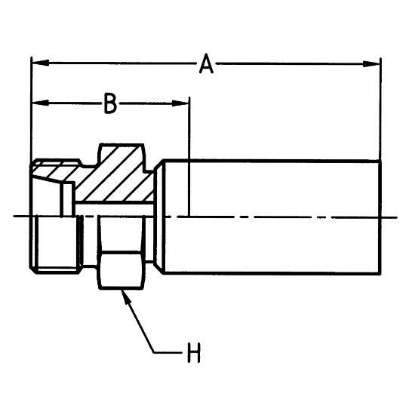

| Sechskantgröße | 24 mm (see Drawing legend H) |
| Marke | Parker |
| Fitting Length | 74 mm (see Drawing legend A) |
| Schlauch-Nenninnendurchmesser | 12 |
| Industrie | Industrial Manufacturing Equipment |
| Drop Length | n/a |
| Anschluss 1 Typ | Hose |
| Gehäusematerial | Galvanised steel |
| Technologie | Fluid & Gas Handling |
| Produkttyp | Ultra-High Pressure Fittings |
| Division | Polymer Hose Division Europe |
| Konfiguration | Hose to Port |
| Beschichtung | Chromium 6 Free-plated |
| Form | Straight |
| Anschlusstyp | DKOS |
| Erfüllte Spezifikationen | ISO 12151-2-S-S |
| Rohraußendurchmesser | 16 mm |
| Größe Anschluss 2 | M24x1.5 |
| Connection Length | 31 mm (see Drawing legend B) |
