| Gewindemass Anschluss (mm) | 20x1.5 |
| Schlauch I.D. (mm) | 7.9 |
| Gewindemass Anschluss (Zoll) | – |
| Drop Length | n/a |
| Industrie | Industrial Manufacturing Equipment |
| Anschluss 1 Typ | Hose |
| Marke | Parker |
| Gehäusematerial | Galvanised steel |

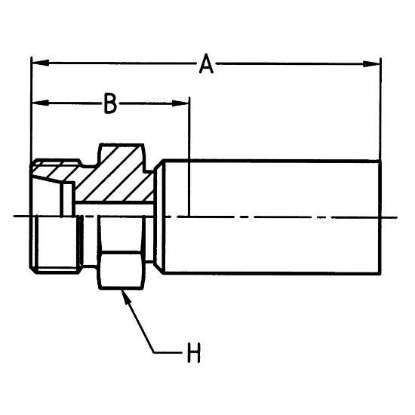

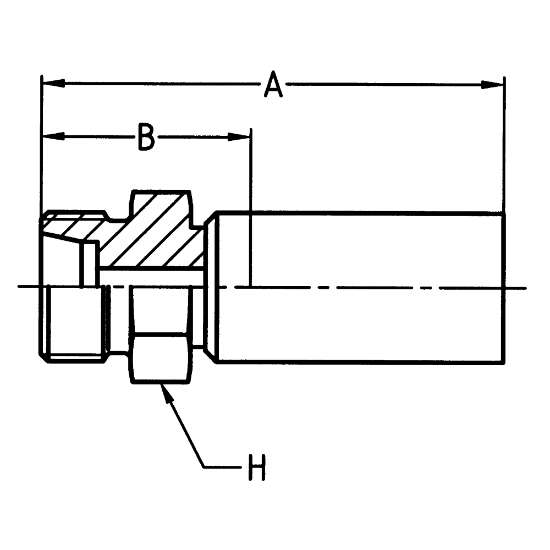

| Sechskantgröße | 22 mm (see Drawing legend H) |
| Fitting Length | 62 mm (see Drawing legend A) |
| Schlauch-Nenninnendurchmesser | 8 |
| Konfiguration | Hose to Port |
| Division | Polymer Hose Division Europe |
| Produkttyp | Ultra-High Pressure Fittings |
| Beschichtung | Chromium 6 Free-plated |
| Technologie | Fluid & Gas Handling |
| Form | Straight |
| Anschlusstyp | DKOS |
| Erfüllte Spezifikationen | ISO 12151-2-S-S |
| Rohraußendurchmesser | 12 mm |
| Größe Anschluss 2 | M20x1.5 |
| Connection Length | 28 mm (see Drawing legend B) |
