| Anschluss 2 Typ | Female, Metric S, Swivel (24° Cone with O-Ring) |
| Größe Anschluss 2 | M22x1.5 |
| Maximaler Betriebsdruck (MPa) | 63 |
| Form | Gerade |
| Schlauch I.D. (mm) | 9.5 |
| Anschluss 1 Typ | Hose |
| Gehäusematerial | Galvanised steel |

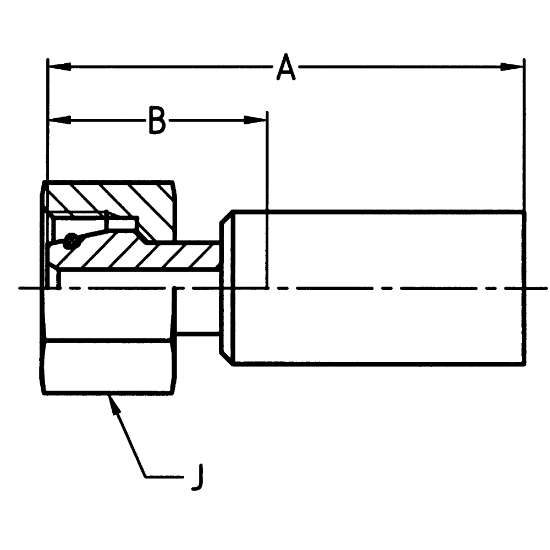

| Fitting Length | 71 mm (see drawing Legend A) |
| Produkttyp | Ultra-High Pressure Fittings |
| Rohraußendurchmesser | 14 mm |
| Marke | Parker |
| Industrie | Industrial Manufacturing Equipment |
| Technologie | Fluid & Gas Handling |
| Konfiguration | Hose to Port |
| Division | Polymer Hose Division Europe |
| Schlauch-Nenninnendurchmesser | 10 |
| Beschichtung | Chromium 6 Free-plated |
| Sechskantgröße | 27 mm (see drawing Legend J) |
| Form | Straight |
| Anschlusstyp | DKOS |
| Erfüllte Spezifikationen | ISO 12151-2-SWS-S |
| Größe Anschluss 2 | M22x1.5 |
| Connection Length | 30 mm (see drawing Legend B) |
