1C6NX-10-04

Metric female swivel 24°/60°
Verfügbarkeit: Bestellartikel
Artikelnummer: 1015931
Lieferzeit: 15 Tage
11,65 €
exklusive Versand
Produktspezifikation
AttributbezeichnungAttributwert
Schlauch I.D. (mm)6.4
Gewindemass Anschluss (mm)18x1.5
Gewindemass Anschluss (Zoll)

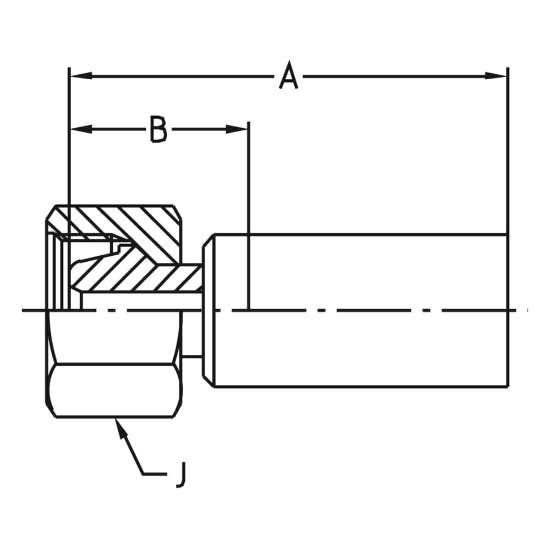

Fitting Length59 mm (see Drawing legend A)
Sechskantgröße22 mm (see Drawing legend J)
MarkeParker
GehäusematerialGalvanised steel
IndustrieIndustrial Manufacturing Equipment
Schlauch-Nenninnendurchmesser6
Drop Lengthn/a
Anschluss 1 TypHose
BeschichtungChromium 6 Free-plated
TechnologieFluid & Gas Handling
ProdukttypUltra-High Pressure Fittings
KonfigurationHose to Port
DivisionPolymer Hose Division Europe
FormStraight
AnschlusstypDKR
Erfüllte SpezifikationenBS 5200-A
Rohraußendurchmesser10 mm
Maximaler Betriebsdruck63.0 MPa
Größe Anschluss 2M18x1.5
Connection Length27 mm (see Drawing legend B)
