| Schlauch I.D. (mm) | 6.4 |
| Gewindemass Anschluss (mm) | 14x1.5 |
| Gewindemass Anschluss (Zoll) | – |
| Industrie | Industrial Manufacturing Equipment |
| Marke | Parker |
| Gehäusematerial | Galvanised steel |
| Anschluss 1 Typ | Hose |

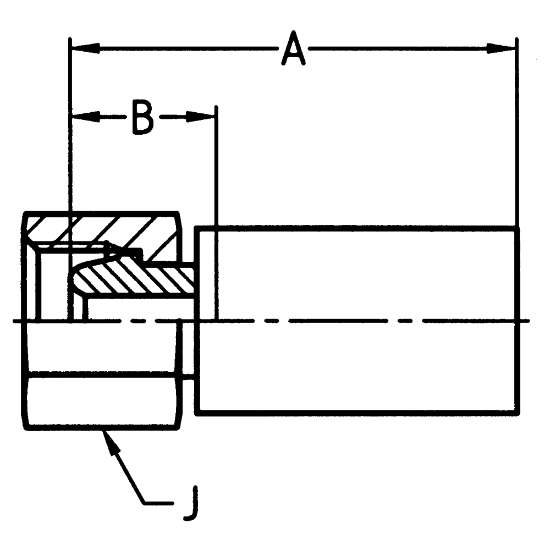

| Fitting Length | 46 mm (see Drawing legend A) |
| Sechskantgröße | 17 mm (see Drawing legend J) |
| Schlauch-Nenninnendurchmesser | 6 |
| Drop Length | n/a |
| Beschichtung | Chromium 6 Free-plated |
| Produkttyp | Ultra-High Pressure Fittings |
| Division | Polymer Hose Division Europe |
| Technologie | Fluid & Gas Handling |
| Konfiguration | Hose to Port |
| Form | Straight |
| Anschlusstyp | DKR |
| Erfüllte Spezifikationen | BS 5200-A |
| Rohraußendurchmesser | 8 mm |
| Größe Anschluss 2 | M14x1.5 |
| Connection Length | 18 mm (see Drawing legend B) |
