| Größe Anschluss 2 | 1/2x14 |
| Anschluss 2 Typ | Female, BSP Parallel Pipe, Swivel (60° Cone) |
| Form | Gerade |
| Schlauch I.D. (mm) | 12.7 |
| Maximaler Betriebsdruck (MPa) | 43 |
| Anschluss 1 Typ | Hose |
| Marke | Parker |
| Produkttyp | Ultra-High Pressure Fittings |
| Gehäusematerial | Galvanised steel |
| Industrie | Industrial Manufacturing Equipment |

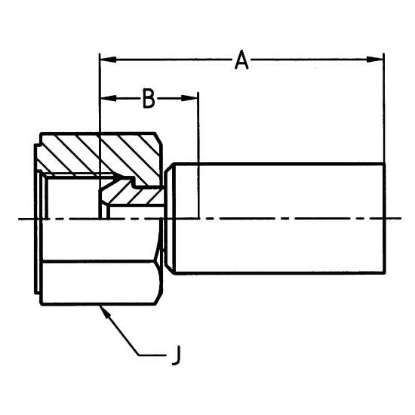

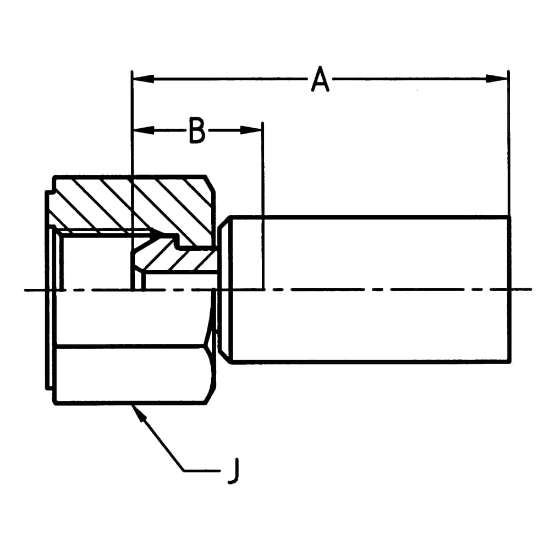

| Fitting Length | 63 mm (see drawing Legend A) |
| Konfiguration | Hose to Port |
| Technologie | Fluid & Gas Handling |
| Division | Polymer Hose Division Europe |
| Schlauch-Nenninnendurchmesser | 12 |
| Beschichtung | Chromium 6 Free-plated |
| Sechskantgröße | 27 mm (see drawing Legend J) |
| Form | Straight |
| Anschlusstyp | DKR |
| Erfüllte Spezifikationen | BS 5200-A |
| Größe Anschluss 2 | 1/2x14 |
| Connection Length | 20 mm (see drawing Legend B) |
