| Anschluss 2 Typ | SAE Code 62 Flange Head |
| Form | Gerade |
| Anschlussgröße | 1" |
| Anschlusstyp | ISO 6162-2 - Flansch |
| Schlauch-Innendurchmesser | -12 |
| Gehäusematerial | Steel |
| Anschluss 1 Typ | Hose |
| Produkttyp | Crimp Fittings – No-Skive |
| Anwendungen | General high pressure hydraulic applications |

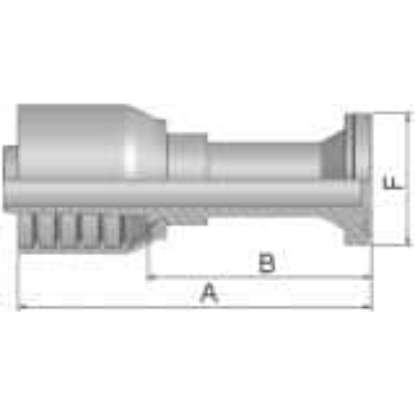

| Flanschgröße | 48 mm (see drawing Legend F) |
| Industrie | Off-road Machinery|Transportation |
| Technologie | Fluid & Gas Handling |
| Marke | Parker |
| Fitting Length | 110 mm (see drawing Legend A) |
| Division | Polymer Hose Division Europe |
| Konfiguration | Hose to Port |
| Form | Straight |
| Anschlusstyp | SFS |
| Erfüllte Spezifikationen | ISO 12151-3-S-S |
| Größe Anschluss 2 | 1 inch |
| Connection Length | 70 mm (see drawing Legend B) |
