| Anschluss 2 Typ | Female JIC 37° - Swivel |

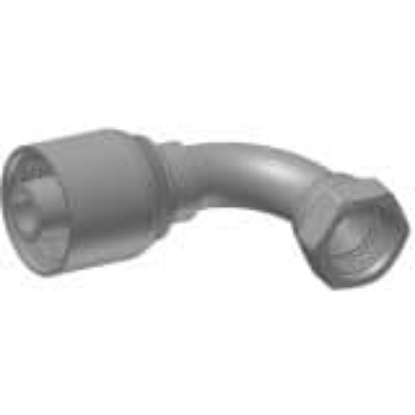

| Form | Elbow - Short Drop 90° |
| Anschlussgröße | 3/8" |
| Anschlusstyp | JIC |
| Schlauch-Innendurchmesser | -6 |
| Gehäusematerial | Steel |
| Marke | Parker |
| Fitting Length | 57 mm (see drawing Legend A) |
| Produkttyp | Crimp Fittings – No-Skive |
| Anwendungen | General high pressure hydraulic applications |
| Drop Length | 23 mm (see drawing Legend E) |
| Anschluss 1 Typ | Hose |
| Sechskantgröße | 19 mm (see drawing Legend W) |
| Industrie | Off-road Machinery|Transportation |
| Technologie | Fluid & Gas Handling |
| Division | Polymer Hose Division Europe |
| Konfiguration | Hose to Port |
| Form | Elbow 90° - Short Drop |
| Anschlusstyp | DKJ |
| Erfüllte Spezifikationen | ISO 12151-5-SWES |
| Größe Anschluss 2 | 9/16x18 |
| Connection Length | 28 mm (see drawing Legend B) |
