| Schlauch I.D. (mm) | 19 |
| Gewindemass Anschluss (mm) | 36x2 |
| Gewindemass Anschluss (Zoll) | – |

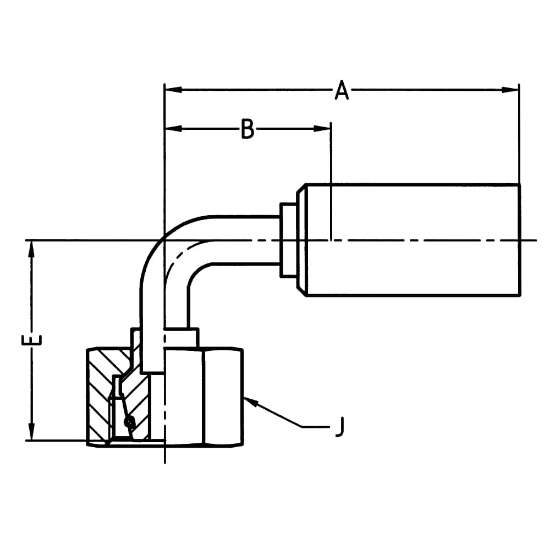

| Sechskantgröße | 46 mm (see Drawing legend J) |
| Anschluss 1 Typ | Hose |
| Industrie | Industrial Manufacturing Equipment |
| Fitting Length | 117 mm (see Drawing legend A) |
| Marke | Parker |
| Gehäusematerial | Galvanised steel |
| Drop Length | 62 mm (see drawing Legend E) |
| Schlauch-Nenninnendurchmesser | 19 |
| Konfiguration | Hose to Port |
| Produkttyp | Ultra-High Pressure Fittings |
| Division | Polymer Hose Division Europe |
| Technologie | Fluid & Gas Handling |
| Beschichtung | Chromium 6 Free-plated |
| Form | Elbow 90° |
| Anschlusstyp | DKOS |
| Erfüllte Spezifikationen | ISO 12151-2-SWE-S |
| Rohraußendurchmesser | 25 mm |
| Größe Anschluss 2 | M36x2 |
| Connection Length | 65 mm (see Drawing legend B) |
