11CNX-12-05

Metric female swivel 24° with O-ring
Verfügbarkeit: 26 Stk. lagernd
Artikelnummer: 1013526
Lieferzeit: sofort
32,55 €
exklusive Versand
Produktspezifikation
AttributbezeichnungAttributwert
Gewindemass Anschluss (mm)20x1.5
Schlauch I.D. (mm)7.9
Gewindemass Anschluss (Zoll)
Anschluss 1 TypHose

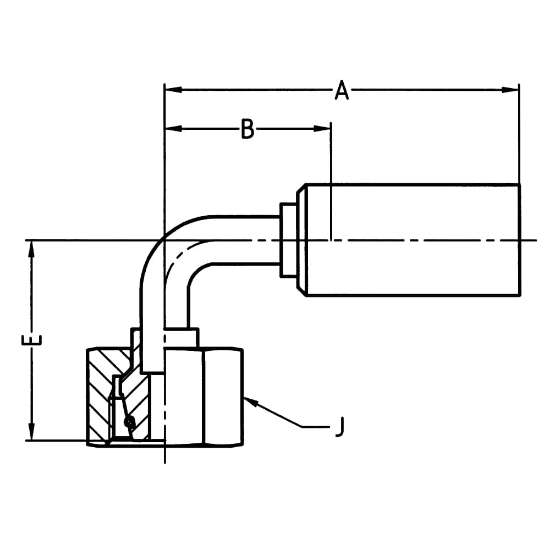

Drop Length36 mm (see drawing Legend E)
Fitting Length64 mm (see Drawing legend A)
Schlauch-Nenninnendurchmesser8
Sechskantgröße24 mm (see Drawing legend J)
GehäusematerialGalvanised steel
IndustrieIndustrial Manufacturing Equipment
MarkeParker
TechnologieFluid & Gas Handling
BeschichtungChromium 6 Free-plated
ProdukttypUltra-High Pressure Fittings
DivisionPolymer Hose Division Europe
KonfigurationHose to Port
FormElbow 90°
AnschlusstypDKOS
Erfüllte SpezifikationenISO 12151-2-SWE-S
Rohraußendurchmesser12 mm
Größe Anschluss 2M20x1.5
Connection Length30 mm (see Drawing legend B)
