| Gewindemass Anschluss (Zoll) | 3/4 - 16 |
| Gewindemass Anschluss (mm) | – |
| Schlauch I.D. (mm) | 9.5 |
| Anschluss 1 Typ | Hose |
| Drop Length | n/a |
| Industrie | Industrial Manufacturing Equipment |

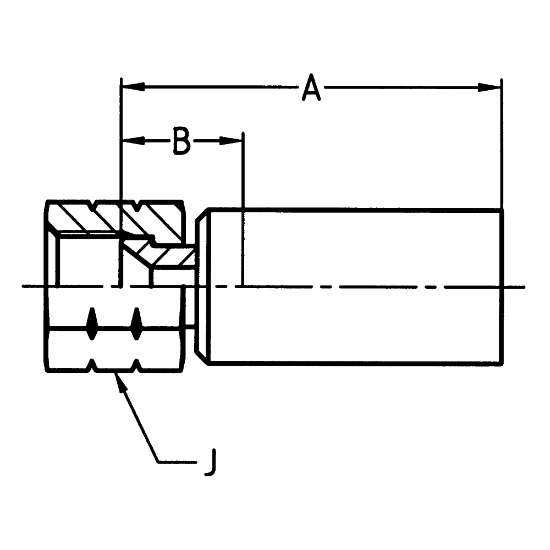

| Sechskantgröße | 24 mm (see Drawing legend J) |
| Marke | Parker |
| Gehäusematerial | Galvanised steel |
| Fitting Length | 59 mm (see Drawing legend A) |
| Schlauch-Nenninnendurchmesser | 10 |
| Konfiguration | Hose to Port |
| Produkttyp | Ultra-High Pressure Fittings |
| Division | Polymer Hose Division Europe |
| Beschichtung | Chromium 6 Free-plated |
| Technologie | Fluid & Gas Handling |
| Form | Straight |
| Anschlusstyp | DKJ |
| Erfüllte Spezifikationen | ISO12151-5-SWS |
| Rohraußendurchmesser | n/a |
| Größe Anschluss 2 | 3/4x16 |
| Connection Length | 19 mm (see Drawing legend B) |
