| Gewindemass Anschluss (Zoll) | 1 1/16 - 12 |
| Gewindemass Anschluss (mm) | – |
| Schlauch I.D. (mm) | 15.9 |

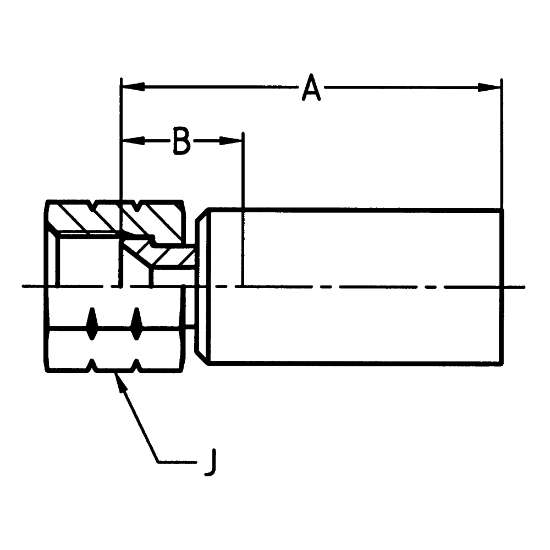

| Fitting Length | 73 mm (see Drawing legend A) |
| Drop Length | n/a |
| Marke | Parker |
| Gehäusematerial | Galvanised steel |
| Sechskantgröße | 32 mm (see Drawing legend J) |
| Anschluss 1 Typ | Hose |
| Industrie | Industrial Manufacturing Equipment |
| Schlauch-Nenninnendurchmesser | 16 |
| Beschichtung | Chromium 6 Free-plated |
| Produkttyp | Ultra-High Pressure Fittings |
| Division | Polymer Hose Division Europe |
| Konfiguration | Hose to Port |
| Technologie | Fluid & Gas Handling |
| Maximaler Betriebsdruck | 350 bar |
| Form | Straight |
| Anschlusstyp | DKJ |
| Erfüllte Spezifikationen | ISO12151-5-SWS |
| Rohraußendurchmesser | n/a |
| Größe Anschluss 2 | 1-1/16x12 |
| Connection Length | 22 mm (see Drawing legend B) |
