| Gewindemass Anschluss (Zoll) | 1/4 - 18 |
| Gewindemass Anschluss (mm) | – |
| Schlauch I.D. (mm) | 6.4 |
| Gehäusematerial | Galvanised steel |
| Industrie | Industrial Manufacturing Equipment |
| Marke | Parker |

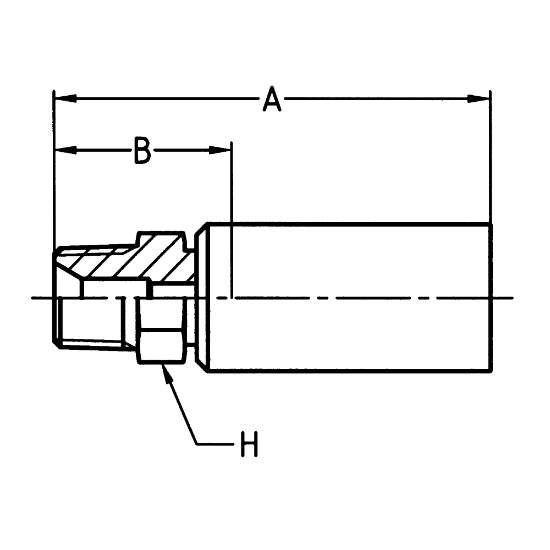

| Fitting Length | 65 mm (see Drawing legend A) |
| Sechskantgröße | 14 mm (see Drawing legend H) |
| Anschluss 1 Typ | Hose |
| Drop Length | n/a |
| Schlauch-Nenninnendurchmesser | 6 |
| Beschichtung | Chromium 6 Free-plated |
| Konfiguration | Hose to Port |
| Division | Polymer Hose Division Europe |
| Technologie | Fluid & Gas Handling |
| Produkttyp | Ultra-High Pressure Fittings |
| Maximaler Betriebsdruck | 830 bar |
| Form | Straight |
| Anschlusstyp | AGN |
| Erfüllte Spezifikationen | SAE J476A / J516 |
| Rohraußendurchmesser | n/a |
| Größe Anschluss 2 | 1/4-18 |
| Connection Length | 33 mm (see Drawing legend B) |
